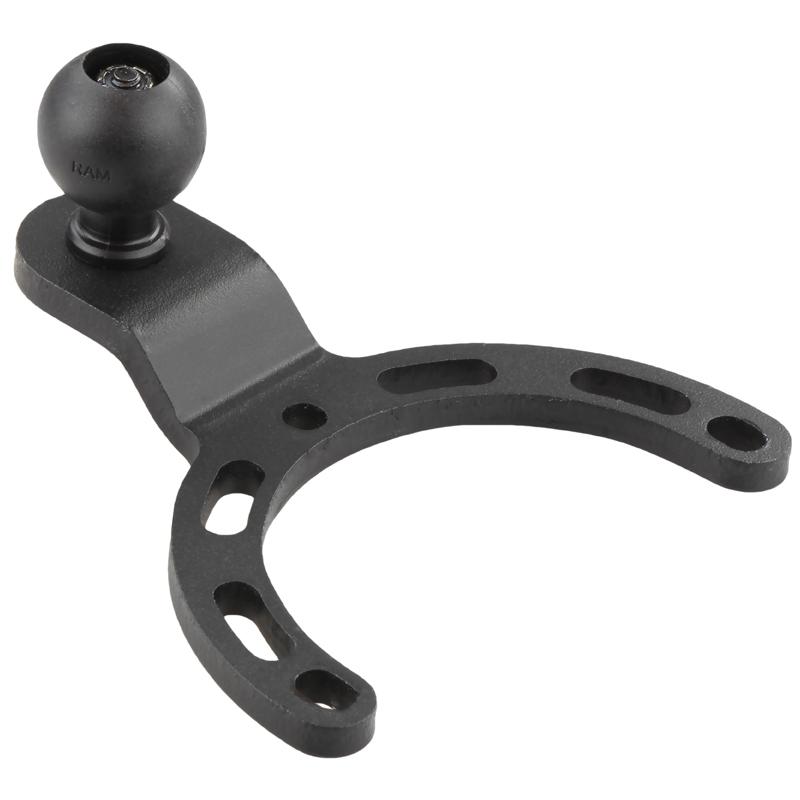

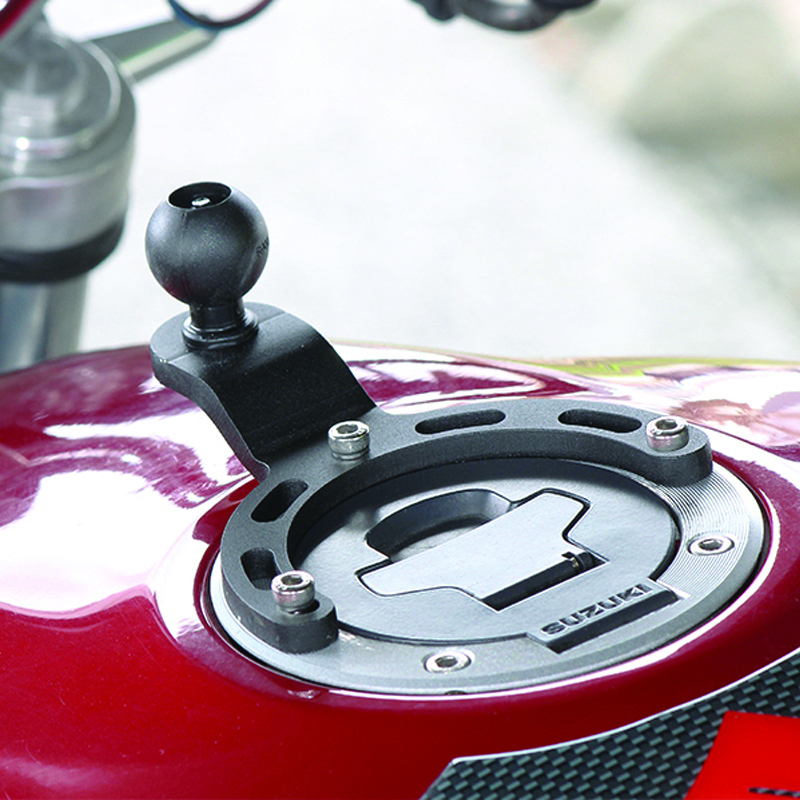

This is a great low-profile way to attach any electronic device to your motorcycle where it is easily accessible. It connects directly to the standard petrol tank cap of any of the listed compatible motorcycles below (Honda, KTM, Suzuki, Yamaha). Includes all required fixings.

Will attach to any RAM 1" socket arm (see Related Products below).

Installation Instructions (PDF)

  • Included Hardware:
    3 x M6-1.0 x 25MM Socket Head Cap Screw
    4 x M5-0.8 x 45MM Socket Head Cap Screw
    3 x M5-0.8 x 35MM Socket Head Cap Screw
    3 x M5-0.8 x 25MM Socket Head Cap Screw
    3 x M5-0.8 x 20MM Socket Head Cap Screw
    3 x M5-0.8 x 16MM Socket Head Cap Screw
    4 x M5 Stainless Steel Flat Washer
    3 x M6 Stainless Steel Flat Washer

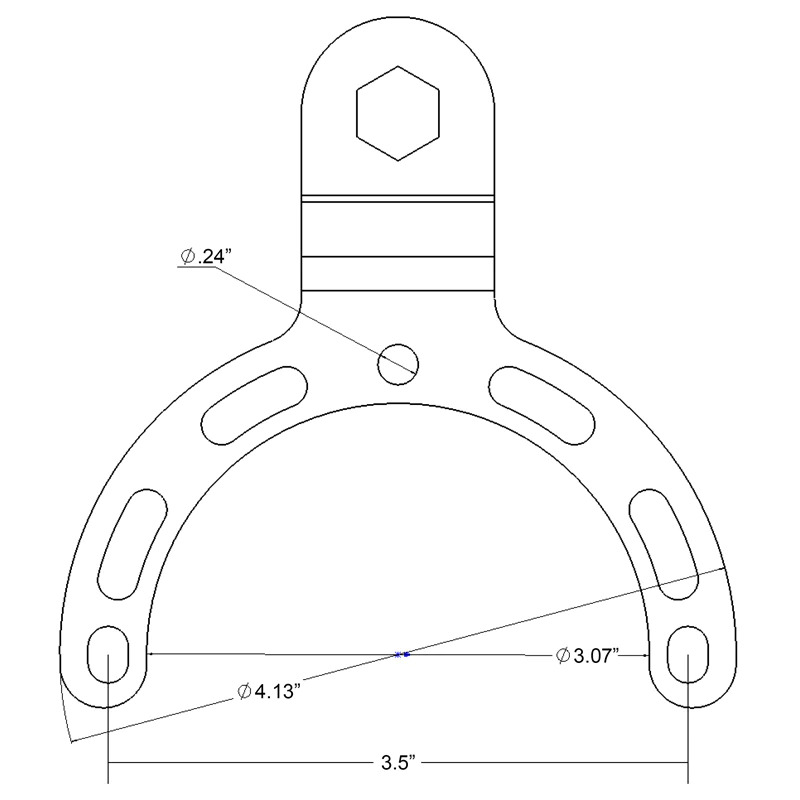

  • Distance between two side holes: 90mm (centre to centre)
  • Distance between top hole and side holes: 63mm (centre to centre)
  • Material: Powder Coated Marine Grade Aluminium & High Strength Composite
  • Ball Size: 1" Rubber Ball "B" Size

Note: The "U" in the part number reflects product packaged in poly bag.

SKU RAM-B-410U
Barcode # 793442951282
Brand RAM Mounts
Country Of Manufacture United States
Product Specifications

Colour: Black

Custom Bundle: No

Non-Domestic Product: No

Modified Item: No

Warranty: Lifetime

Manufacturer Warranty: Lifetime
