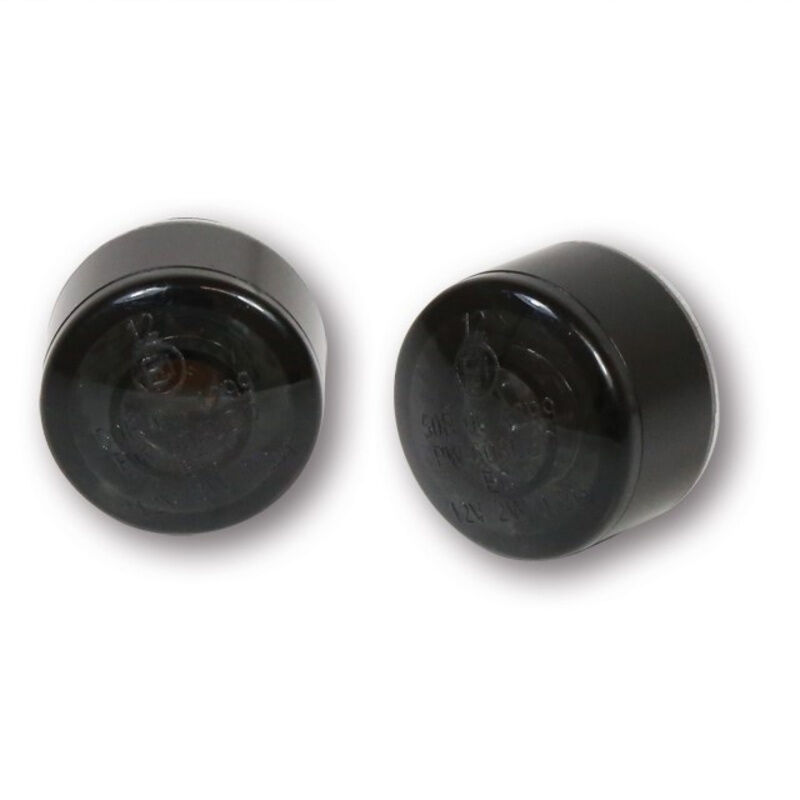

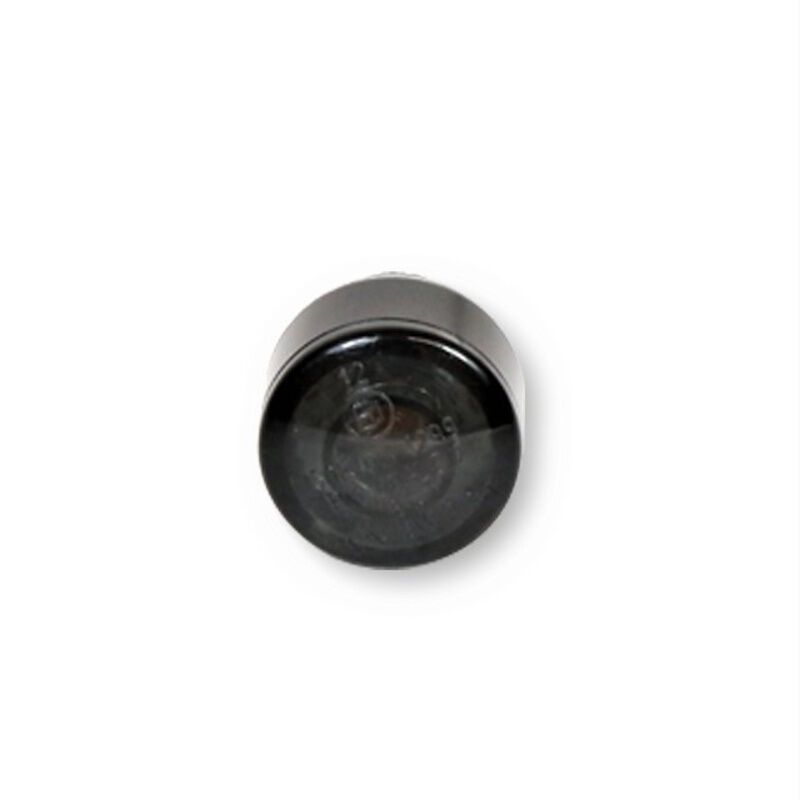

HIGHSIDER APOLLO LED tail light, brake light, turn signal module

LED tail light, brake light, turn signal module suitable for recessed or surface mounting, black aluminium ring with tinted glass, E-tested. There are two very bright SMDs in the center. The outer ring consists of COBs (Chip On Board). With this technique, the semiconductor (without housing) is glued directly onto a printed circuit board. This module is supplied with a black anodised aluminium ring that fits over the base body.

Dimensions:
A1: 13 mm
A2: 9 mm
D1: 22 mm
D2: 20 mm

Threaded bolts: M8, length 12 mm

Connections:
Black cable = mass (-)
Yellow cable = taillight (+)
Red cable = stoplight (+)
Blue = turn signal (+)

Scope of supply: 1 Pair
