This product will let you mount your phone to handlebars/tubes and is a patented, universal waterproof wireless charging cradle designed for seamless single-handed phone placement and removal while benefiting from Qi wireless charging.

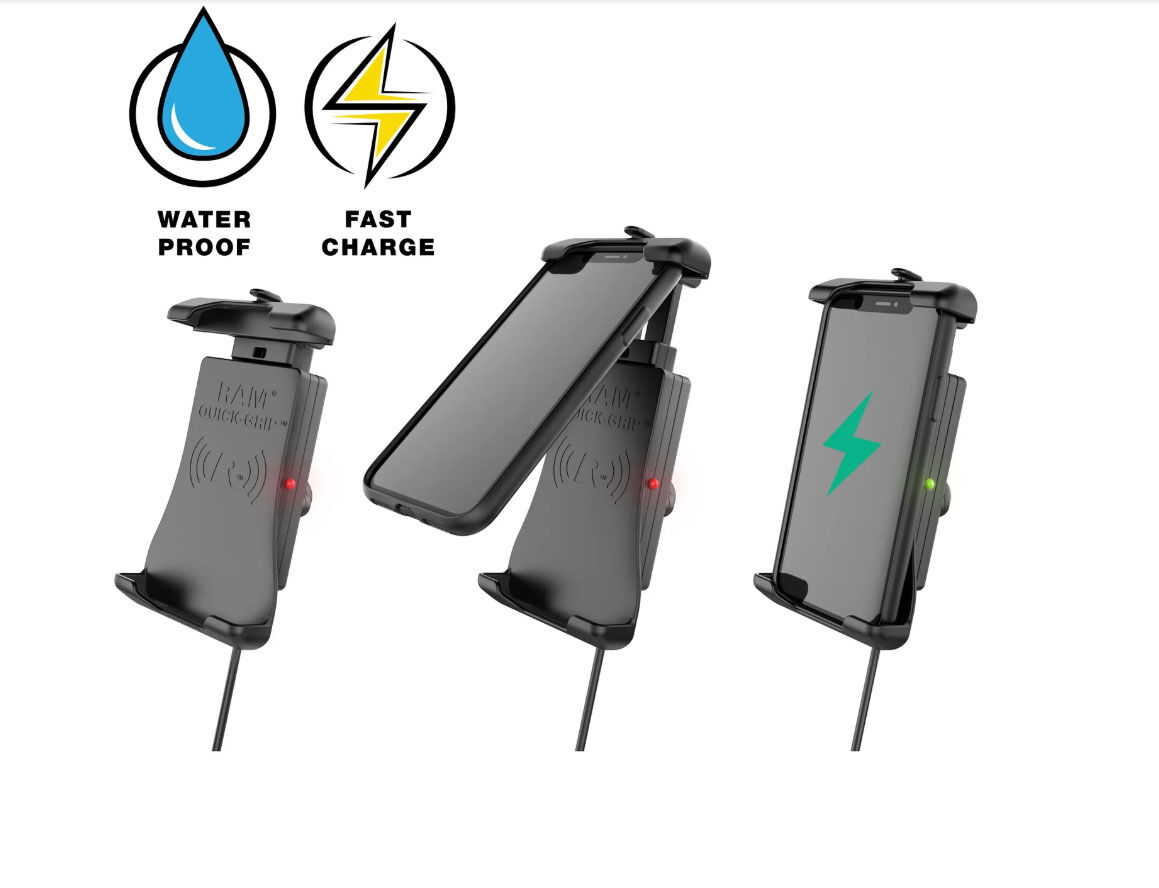

As part of the spring-loaded RAM® Quick-Grip™ family, this cradle ensures a secure fit with rubber-lined top and bottom cups to hold your phone firmly in place. Simply push the top cup upward and gently insert your device for a snug fit.

This Qi-compatible wireless charging cradle powers your device as long as it falls within the listed compatible dimensions. For added security in outdoor environments, a safety tether is included.

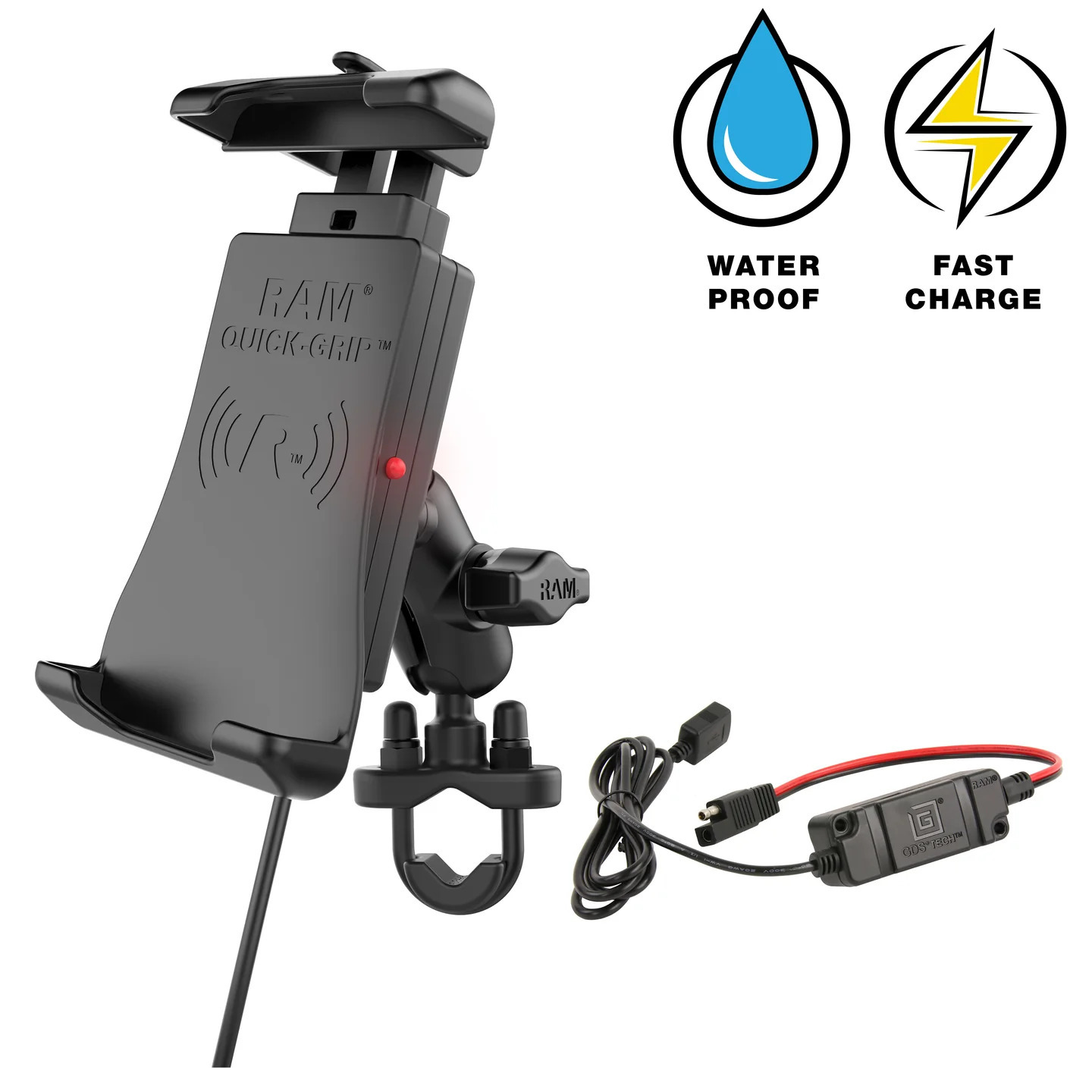

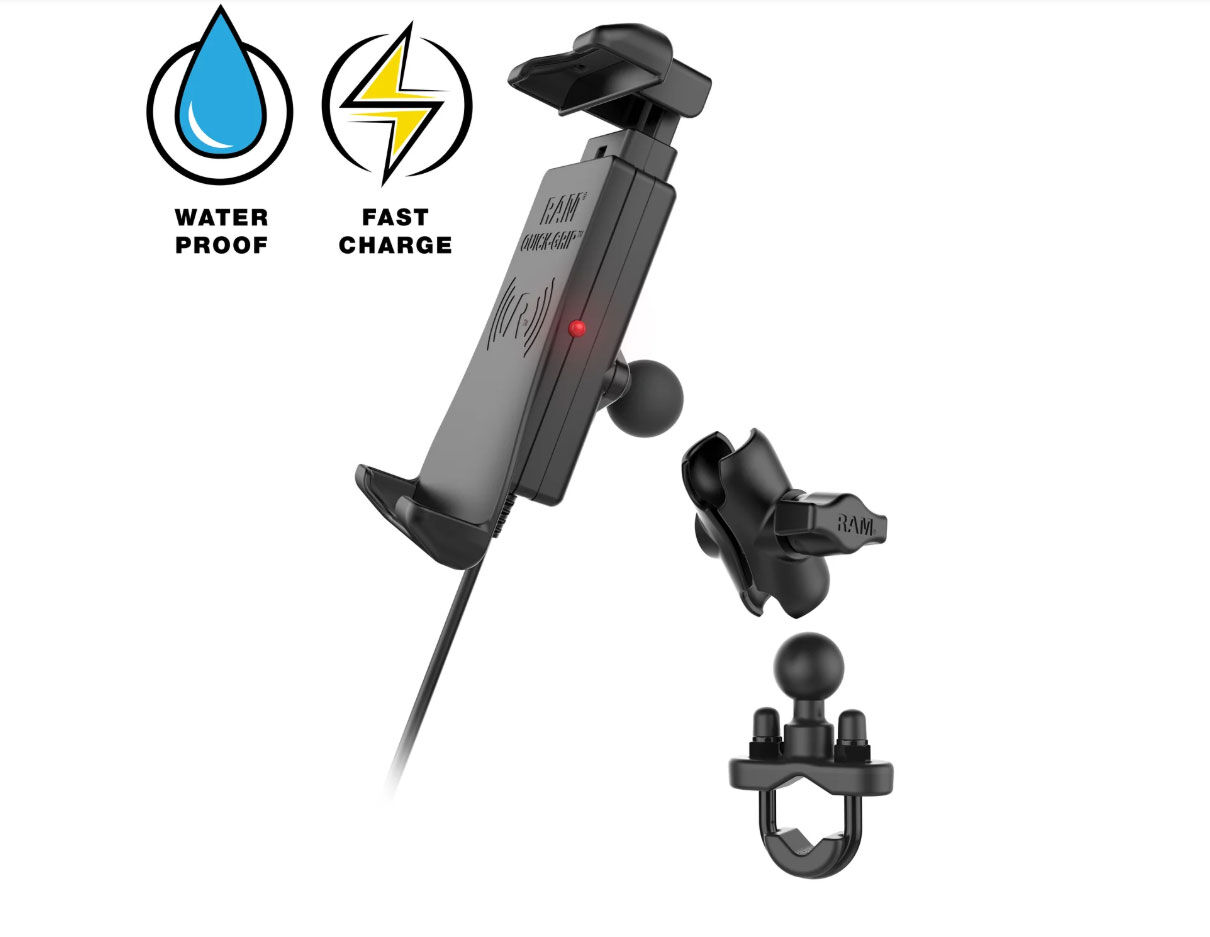

This complete handlebar mounting kit includes a B-size diamond base with a 25 mm (1”) rubber ball, a short-length double socket arm, and a zinc-coated U-bolt base. The U-bolt hardware accommodates rails from 12.7 mm to 31.75 mm in diameter. The integrated Type-A male pigtail connector features an in-line power switch, allowing you to turn off the wireless charging module when not in use. For in-vehicle charging, simply attach the pigtail to the included 1.2 m Type-A male to Type-A female extension cable. The kit also includes a hardwire charger for direct power connection.

Key Features:
✔ Waterproof Qi-Compatible Charging – 15W maximum wireless charging output for fast and reliable charging.
✔ Complete Mounting Kit – Includes wireless charging cradle, B-size ball base, short double socket arm, U-bolt handlebar base, and hardwire charger.
✔ Durable & Weather-Resistant – Made from powder-coated marine-grade aluminum, stainless steel, and high-strength composite for reliability in demanding environments.
✔ Secure & Adjustable – Spring-loaded mechanism ensures a firm grip, while the safety tether provides extra security for outdoor use.
✔ Universal Compatibility – Fits most smartphones within the specified dimensions.

Backed by a Lifetime Warranty on RAM® Mounts and a 1-Year Warranty on RAM® Electronics (proof of purchase required).

Technical Specifications:

Hardware Included:
(1) Safety Tether
(1) Silicon Sleeve for USB waterproof connection
(1) Hardwire Charger with Cable
(4) Small Zip Ties
(4) Large Zip Ties
(1) U-Bolt for 12.7 mm - 25.4 mm Rails
(1) U-Bolt for 25.4 mm - 31.75 mm Rails
(2) Nylock Nuts (1/4"-20)
(2) Rubber Caps
(1) U-Bolt Spacer

Cradle Dimensions:
Height Range: 143 mm - 168 mm
Max Width: 79 mm
Max Depth: 17.8 mm

Clamp Range:
Fits Rails: 12.7 mm - 31.75 mm in diameter

Arm Length:
Socket-to-Socket: 44.5 mm

Ball Size:
B Size: 25 mm (1")

Weight Capacity:
Standard Use: 0.91 kg (2 lbs)
Heavy-Duty Use: 0.45 kg (1 lb)

Materials:
Marine-Grade Aluminium
High-Strength Composite
Stainless Steel

Power & Charging Specifications
✔ Input Power: 5V-2A; 9V-1.67A
✔ Output Power: 15W Maximum
✔ Conversion Efficiency: Up to 85%
✔ Maximum Case Thickness: 6 mm
✔ Working Frequency: 110-205 kHz
✔ Product Standard: WPC v.1.2.4 (Qi-Compatible)
✔ Supports QC2.0/QC3.0 Power Supplies

Connector & Cable Details:
Input Connector: USB Type-A Male
Cable Length: 50.8 cm (20”) with optional 1.2 m extension cable

Operating Temperature:
0°C to +37.7°C

Safety & Compliance
✔ Over Voltage Protection
✔ Short Circuit Protection
✔ Reverse Polarity Protection
✔ RoHS & WEEE Compliant
✔ SAE J-1113-5 Load Dump Protection
✔ Moisture Resistant

Certifications:
✔ CE Certified
✔ E-Mark Certified
✔ RCM Certified
✔ FCC Certified

Warranty & Important Information
RAM® Mounts Lifetime Warranty
RAM® Electronics 1-Year Warranty (proof of purchase required)

Important Usage Notes:

For Open Cockpit Applications (motorcycles, ATVs, boats, etc.): Apply silicone grease to the USB Type-A male & female connectors to prevent corrosion. Failure to do so may void the warranty.
Vibration Warning for iPhone Users: Exposure to motorcycle engine vibrations may affect iPhone camera stabilization. Learn More.
Compatibility with Phone Cases: This charger is not compatible with cases containing metal components.
iPhone 12, 13 & 14 Compatibility Warning: These models support Apple’s MagSafe & Qi charging technologies. MagSafe charges up to 45% faster than Qi. RAM Wireless charging products use Qi BPP & EPP (up to 15W).

Weight:
0.85 kg (1.87 lbs)

The RAM® Quick-Grip™ Wireless Charging Cradle with Handlebar Mount is the perfect solution for riders seeking a secure, waterproof, and fast-charging phone mount that delivers exceptional durability and functionality in even the harshest conditions.
