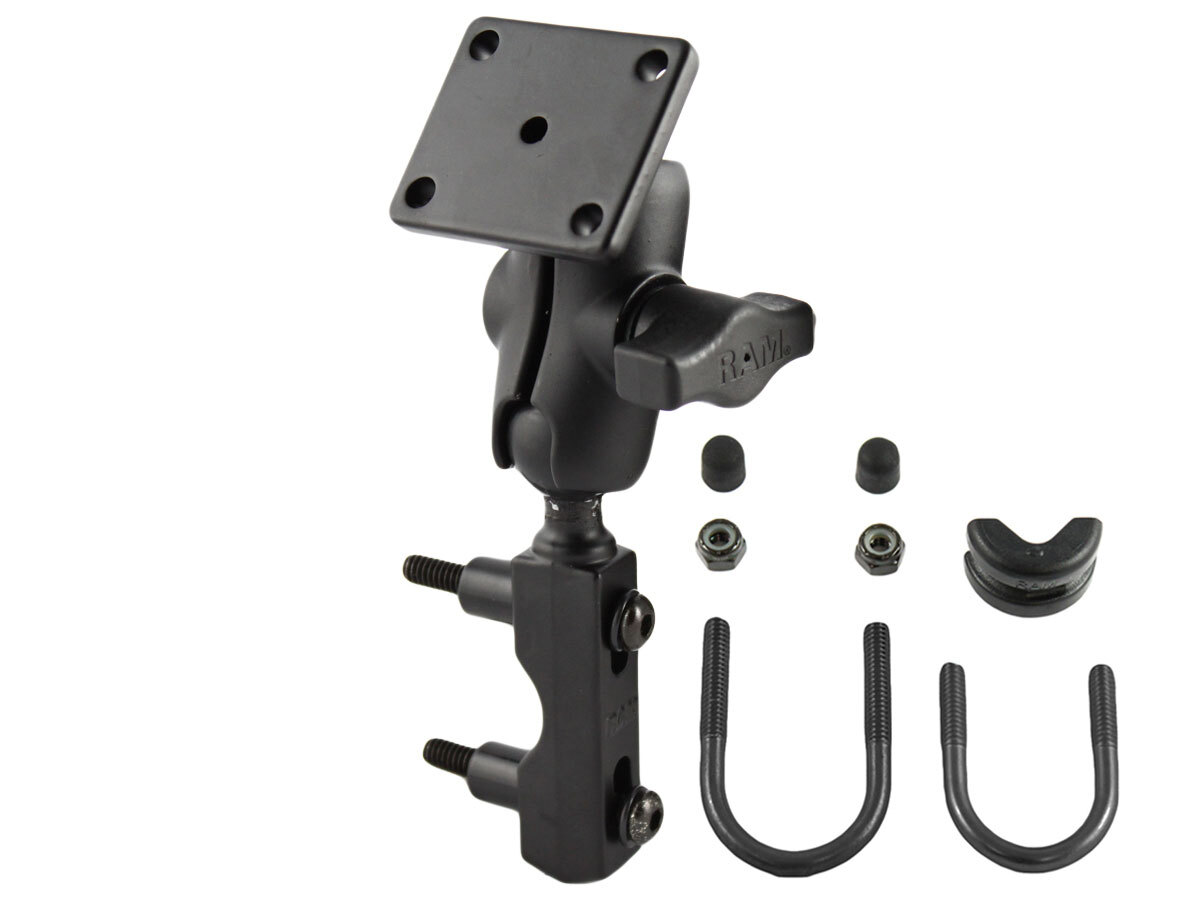

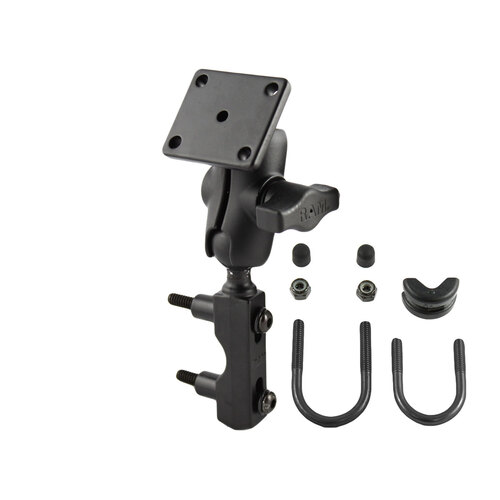

The RAM Combination Handlebar and Brake/Clutch Reservoir Mount offers exceptional versatility for mounting your device to a motorcycle. Designed for maximum flexibility, it allows secure installation to either the handlebar or directly onto the brake/clutch reservoir. With nearly limitless adjustment options, this mount makes it easy to achieve the perfect viewing angle while riding.

Built with RAM’s patented ball-and-socket technology, this mount also reduces shock and vibration, helping to prolong the life of your device even on rough roads. It’s compatible with round rails from 12.7 mm to 31.8 mm in diameter and can also be attached using the included reservoir base. For compatibility, simply compare the hole spacing on your clutch or brake reservoir—the base supports centre-to-centre hole spacing from 23.9 mm to 40.1 mm.

Included Hardware:

• 2 x M6 x 55 mm Hex Bolts

• 2 x 1/4"-20 x 51 mm Hex Bolts

• 2 x 1/4"-20 x 63.5 mm Hex Bolts

• 2 x 12.7 mm Spacers

• 2 x 1/4" Split Lock Washers

• 1 x 1/4"-20 U-Bolt for 12.7 mm – 25.4 mm rails

• 1 x 1/4"-20 U-Bolt for 25.4 mm – 31.8 mm rails

• 2 x 1/4"-20 Nylock Nuts

• 2 x Rubber Caps

• 1 x U-Bolt Spacer

Specifications:

• Clamp Range: 12.7 mm to 31.8 mm diameter

• Socket-to-Socket Arm Length: 44.5 mm

• Hole Pattern: AMPS 4-Hole – 30 mm x 38 mm

• Ball Size: B Size (25.4 mm)

• Weight Capacity:

  • Standard Use: 0.9 kg

  • Heavy-Duty Use: 0.45 kg

• Materials: Marine-grade aluminium

• Packaging Type: Poly Bag

• Product Weight: Approximately 0.31 kg

Whether you're navigating city streets or exploring off the beaten path, this RAM mount offers a stable, durable, and highly adjustable solution for keeping your device secure and accessible throughout your ride.
