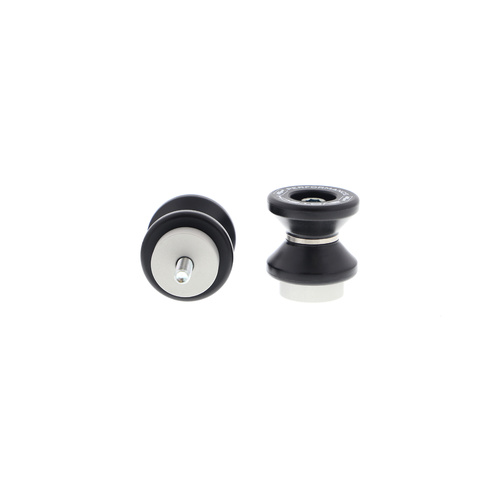

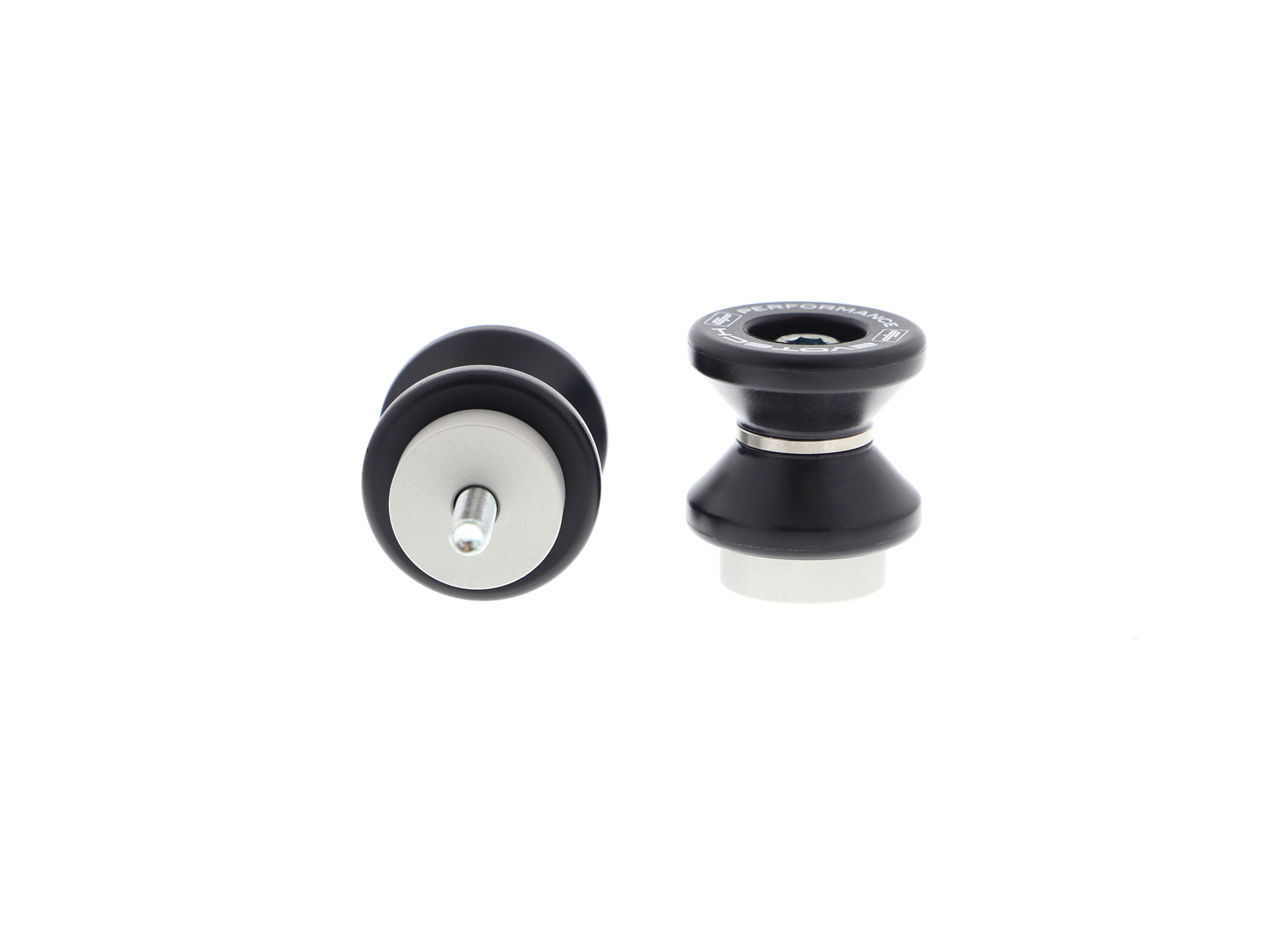

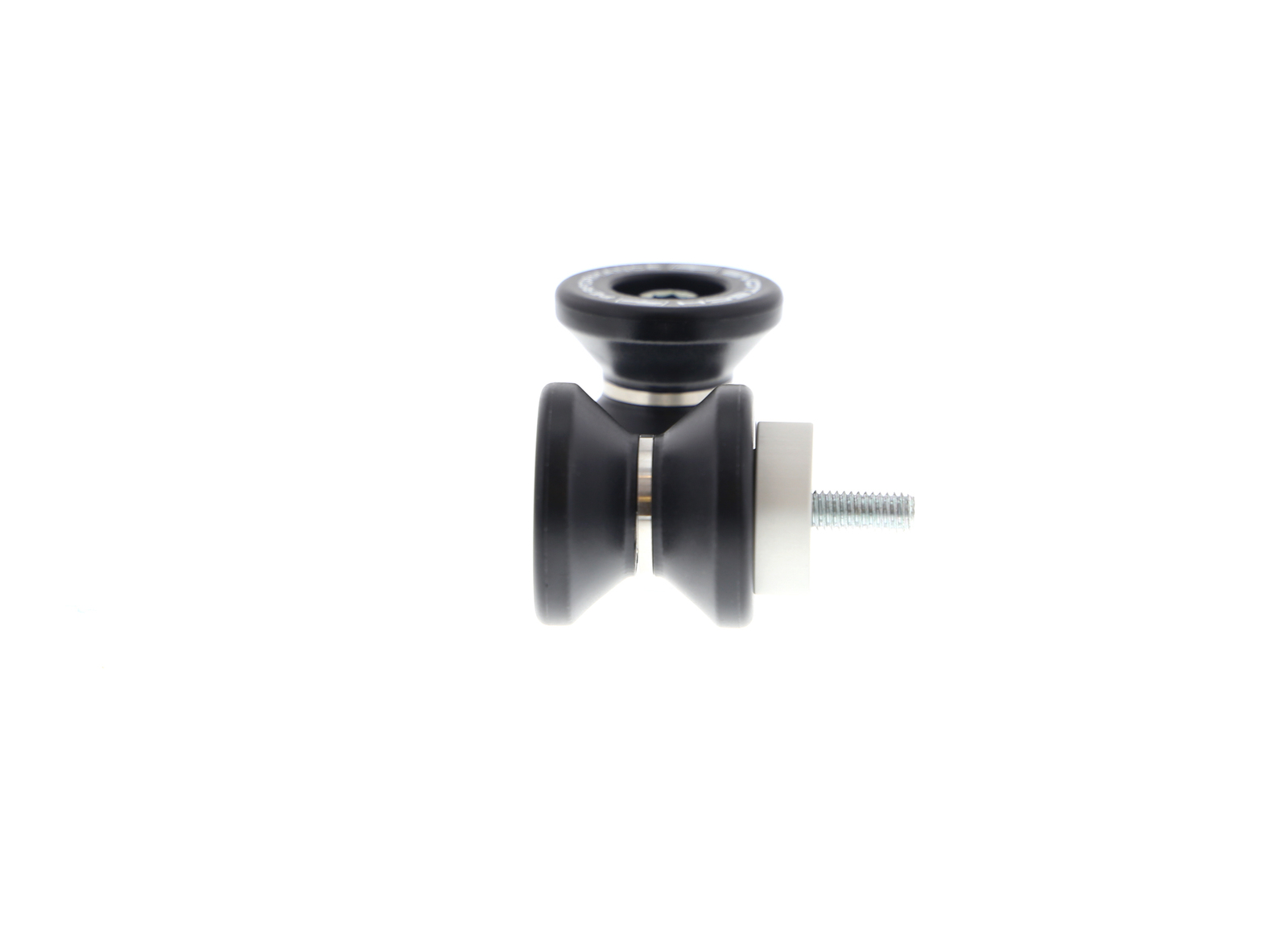

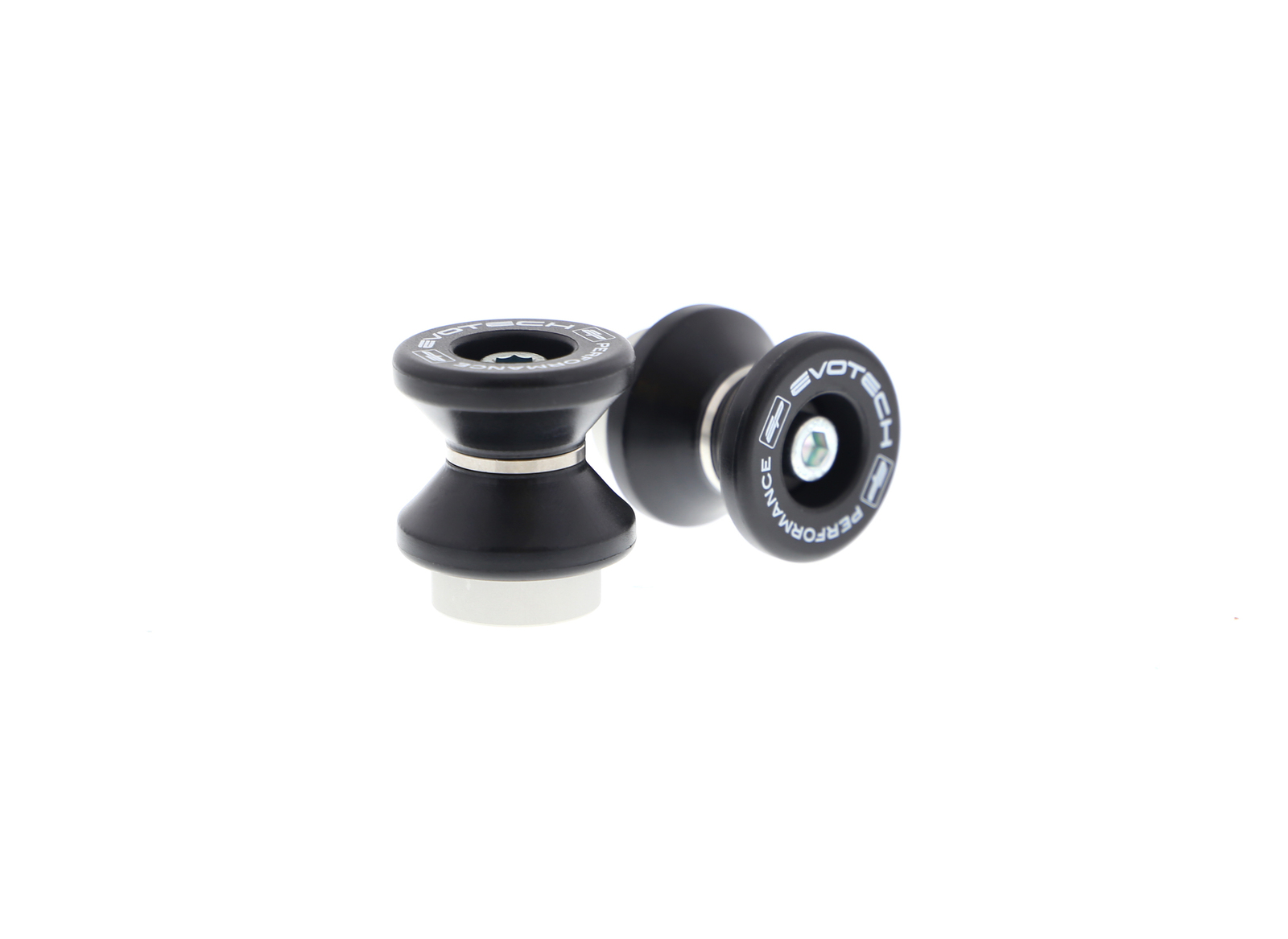

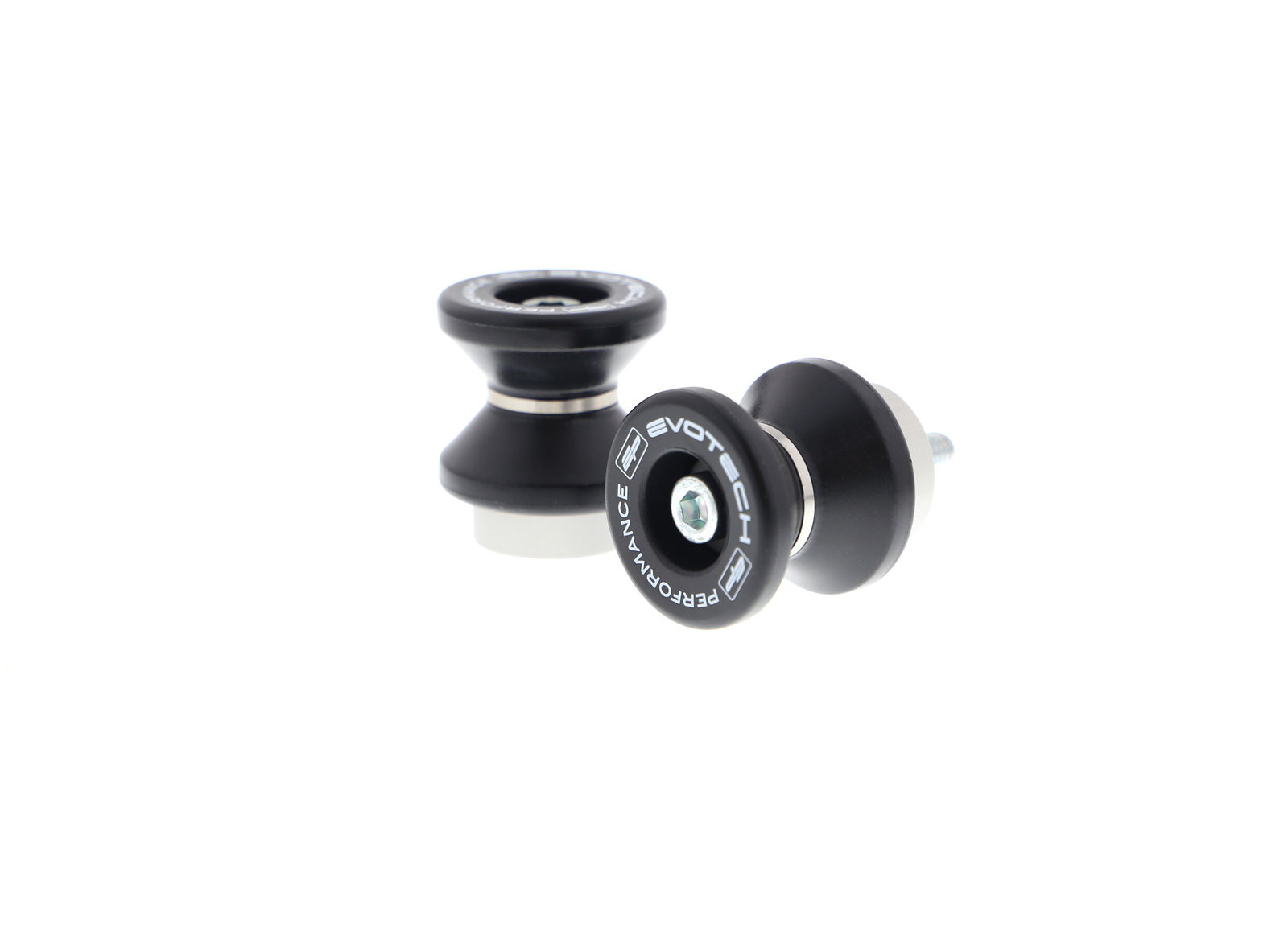

These M6 paddock stand / crash bobbins (frame sliders) are made from high quality Acetal, with Aluminium inserts. They can be fitted in minutes and will make bike maintenance much easier.

The high-quality insert also allows extra spacing in the event that the boss is not flush with outer face of the swinging arm.

• Finish: Black
• Fitting Difficulty: 1 (1 low - 5 high)
• Fitting Time: 5 mins

Will fit the following bikes:

Aprilia Dorsoduro 750 2008 - onwards
Aprilia Dorsoduro 1200 2012 - onwards
Aprilia Falco 1999 - 2006
Aprilia Mana 850 2008 - 2010
Aprilia RSV 1000 1999 - 2008
Aprilia RSV 1000 Factory 2004 - 2008
Aprilia RSV 1000 R 2004 - 2008
Aprilia Shiver SL 750 2007 - onwards
Aprilia Tuono 2004 - 2010
Aprilia Tuono R 2004 - 2010
Triumph Daytona 675 2006 - 2008
Yamaha FZ1N 2006 - onwards
Yamaha FZ1S 2006 - onwards
Yamaha FZ8N 2010 - 2013
Yamaha FZ8S 2010 - onwards
Yamaha MT-03 2006 - 2011
Yamaha R1 1998 - 2014
Yamaha R6 2001 - onwards

M6 Paddock Stand / Crash Protector Bobbins Fitting Advice:

Please note: when fitting paddock stand bobbins, ensure they do not make contact with any other part of the machine. It is also worthwhile checking that there is adequate clearance when suspension is fully compressed. On top of that, make sure there is adequate clearance between the paddock stand bobbins and the silencer, especially when a non-standard exhaust system has been fitted. It is the customer’s responsibility to ensure that the bobbins have been fitted safely and in accordance with these instructions.

Please also note that paddock stand bobbins are designed to support the weight of the motorbike during storage and routine maintenance and service. They are not designed to withstand the additional weight of sitting on the bike.

Installation Instructions (PDF)
