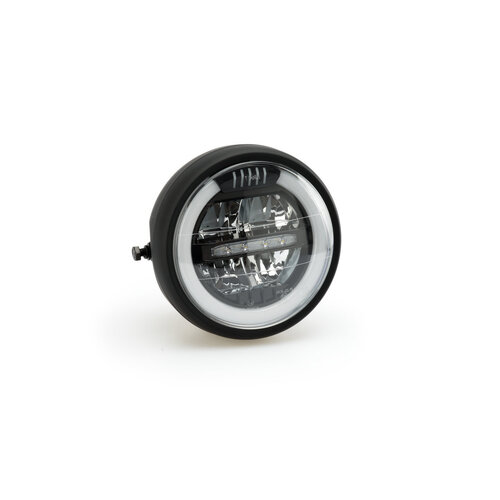

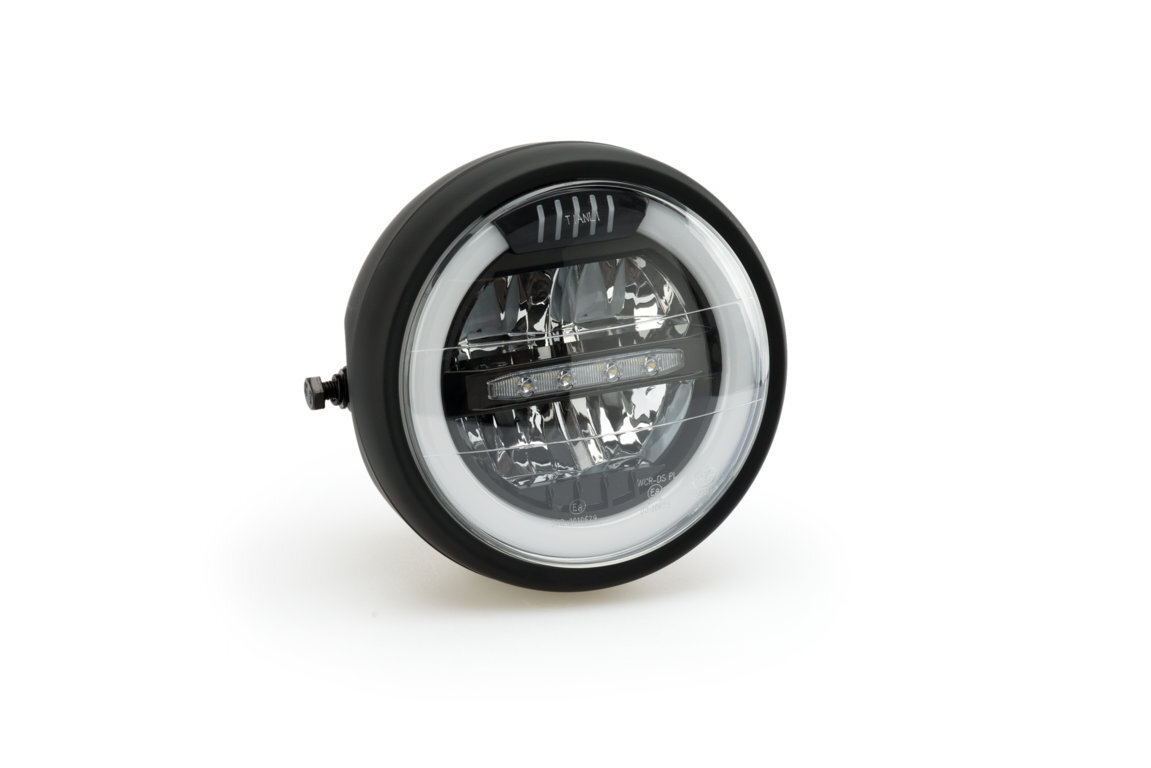

This LED headlight from Puig will give your motorcycle a vintage look while still providing the best lighting technology.

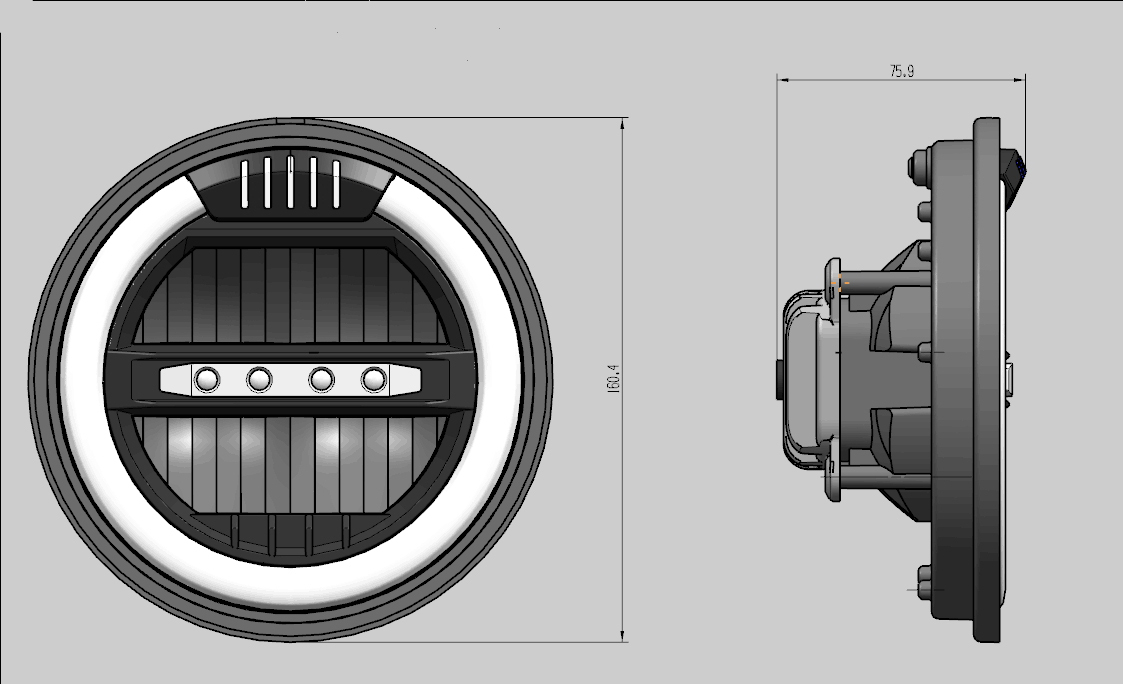

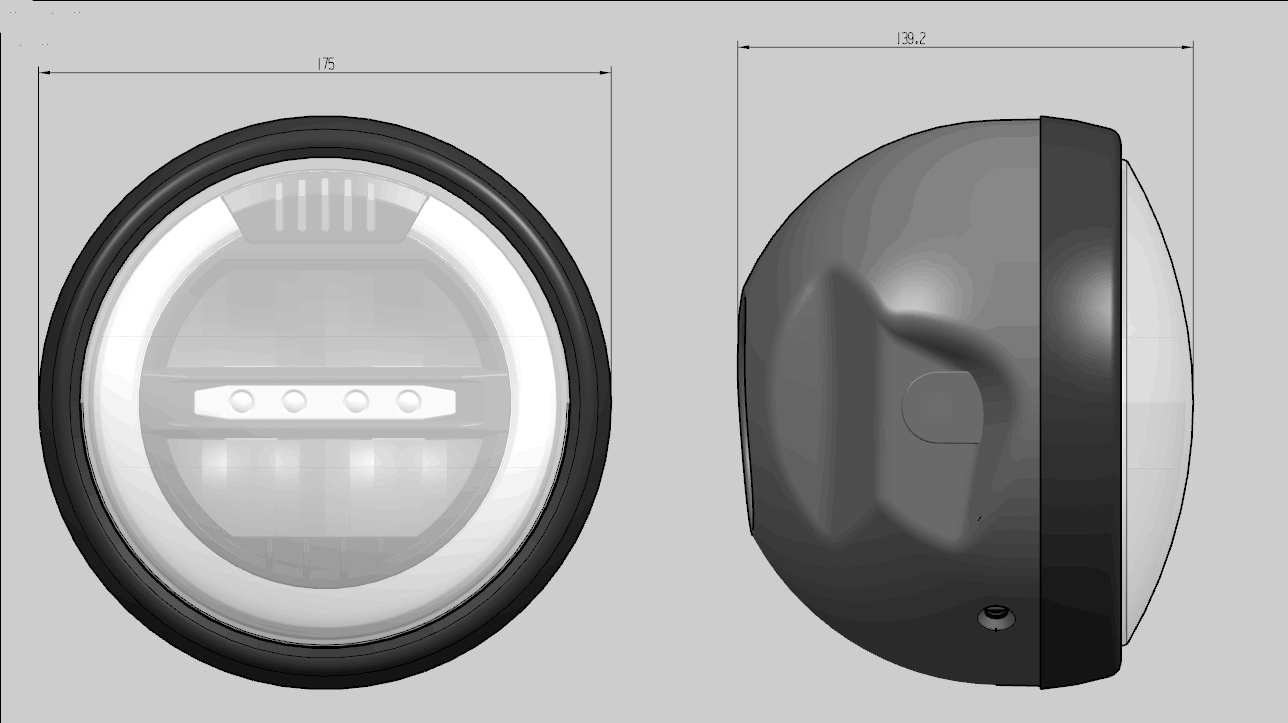

The full size of the light is 175 millimeters wide (6.89 inches) and 160.4 millimeters high (6.31 inches) and the distance between the mounting point and the headlight is 139.2 millimeters.

Please take into account the technology of your own motorcycle when purchasing. If your unit includes LED position lights as standard, you can activate the high and low beams as you would before the modification. That is, when activating position it would have an LED light and when changing (short or long) the LED system will turn off. If your motorcycle only has short and long range lights, they will be activated equally but together with the LED groups.

Includes two screws, two thin washers and two other higher density washers for mounting.

HOMOLOGATED
High Beam:
Watt: 11W / Lumen: 900LM / Lux: 32LUX / Candle Power: 20000
Low Beam:
Watt: 9W / Lumen: 800LM / Lux: 15LUX / Candle Power: 9300
Position Light:
Watt: 4W

Installation Instructions (PDF)
