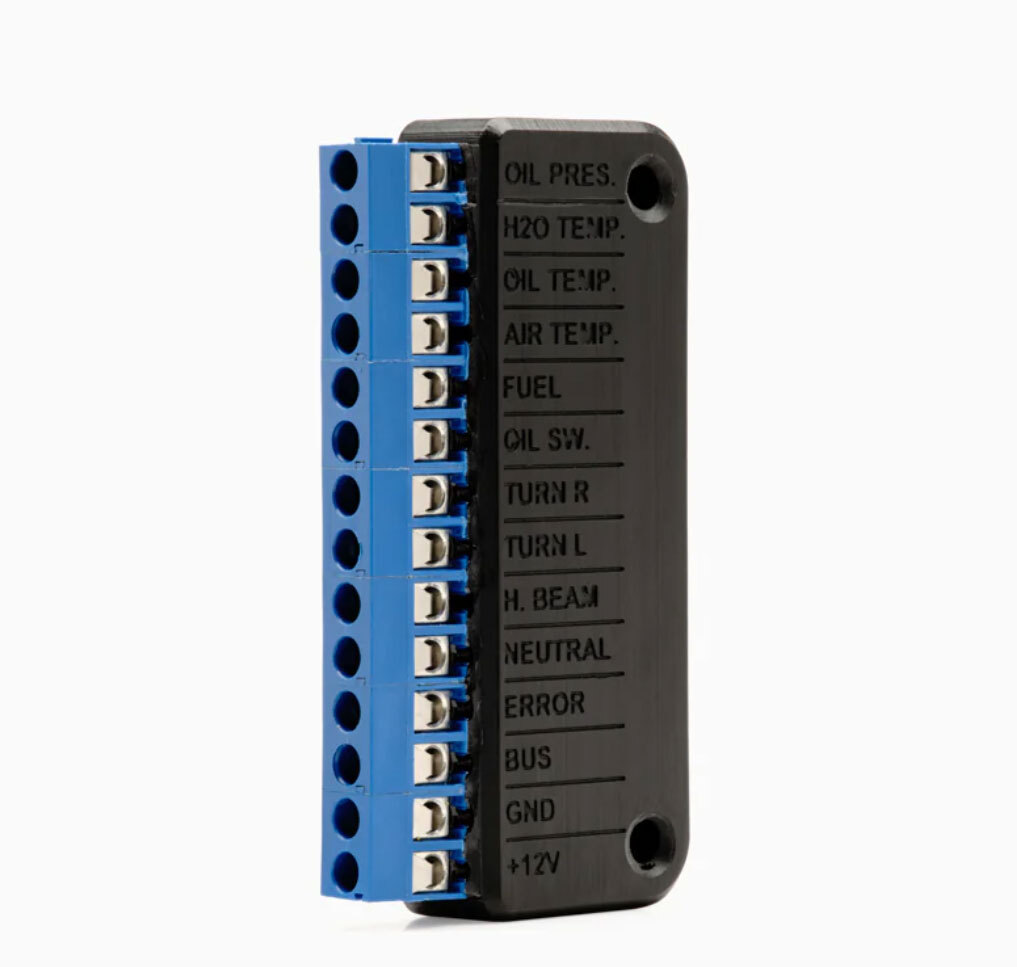

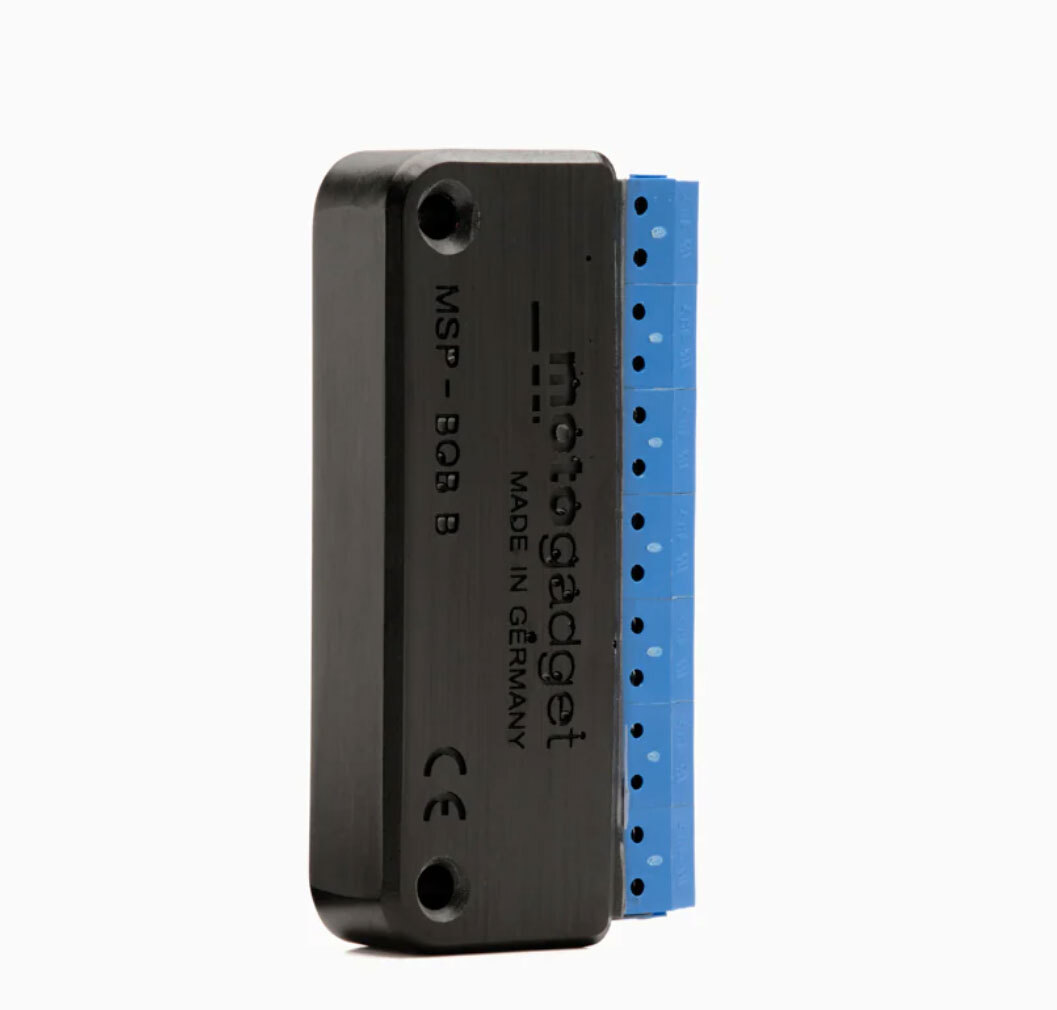

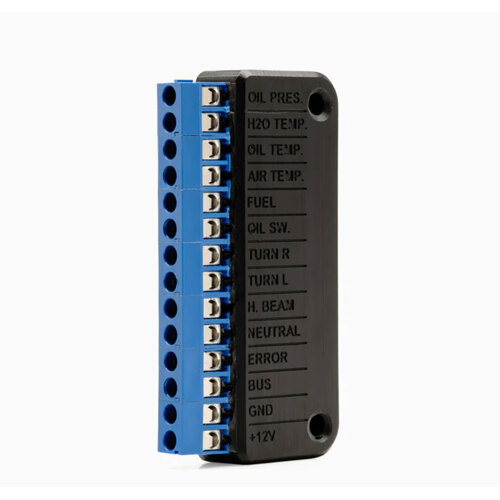

This breakout box is used to connect indicator lights, temperature and oil pressure signal cables to the Motogadget Motoscope Pro (see Related Products below).

Water proof and vibration-resistant, the screw-type terminals make it easy to connect, and there is only one cable between the box and the motoscope pro.

The msp Breakout Box B is compatible with the last generation motoscope pro only. It is incompatible with the older first generation of the device (identified by the missing bar-code decal at back side).
  • Dimensions (LxBxH): 26 x 39 x 10 mm
  • Input terminals:
    Fuel/reserve
    Oil pressure switch
    Left and right turn indicators
    High beam
    Neutral
    Motor warning light
    Oil temperature
    Water temperature
    Ambient temperature
    Oil pressure
SKU 1005041
Barcode # 4255676300879
Brand Motogadget
Country Of Manufacture Germany
Product Specifications

Universal Fitment: 1
