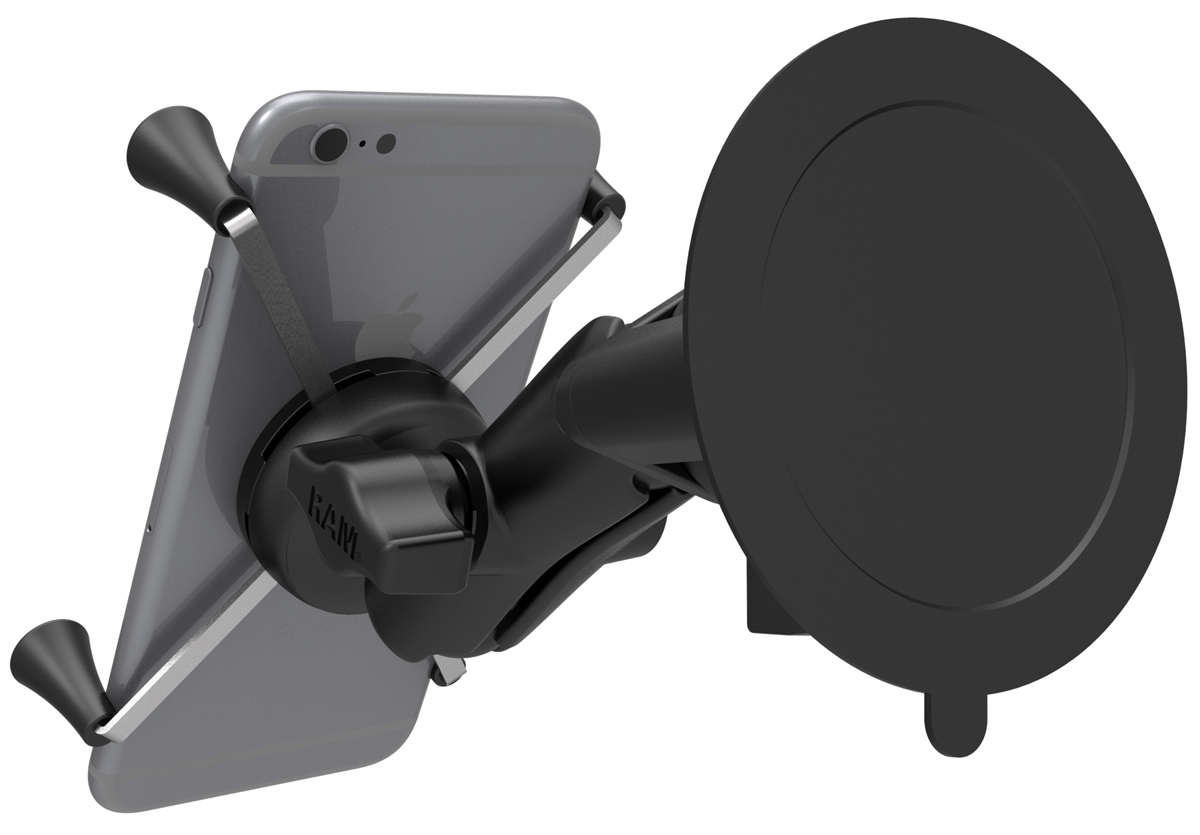

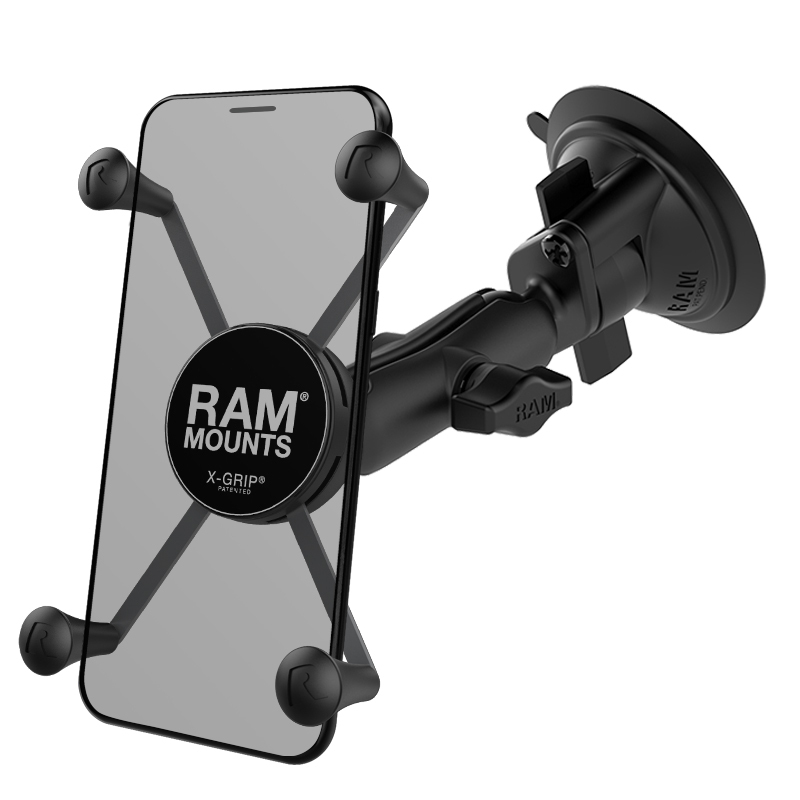

This is a suction cup phone holder for larger phones such as the iPhone 12 Pro Max. It consists of a 3.3" (8.38cm) diameter suction cup twist lock base, a standard length double socket arm and universal spring loaded X-Grip® cradle for large phones and phablets.

The suction cup with a twist lock base is very strong and will hold tight to glass and non-porous plastic surfaces, including RAM adhesive disks. The 1" rubber ball and socket system will allow almost infinite adjustment points at both ends of the socket arm.; And the spring loaded X-Grip® cradle will hold your phone or phablet very tight.

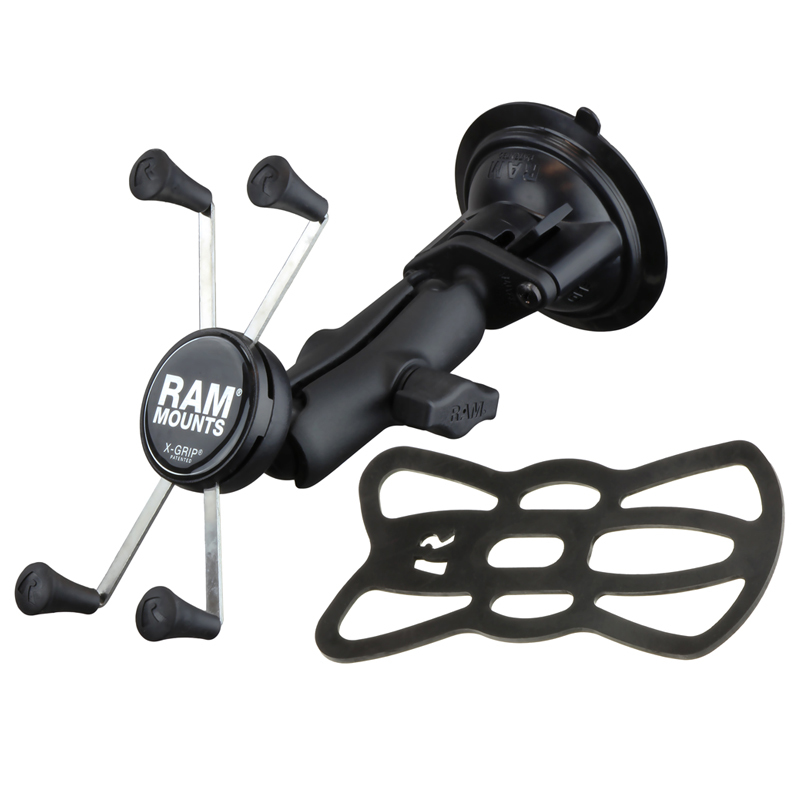

The X-Grip® also includes a tether for "rough" applications.

  • Cradle Dimensions:
    Minimum Width = 1.75" (44.45mm). Minimum height at that width is 5.5" (139.7mm)
    Maximum Width = 4.5" (114.3mm). Minimum height at that width is 3.25" (82.55mm)
    Depth = 0.875" (22.22mm)
  • Rustproof
  • Spring loaded cradle expands and contracts for perfect fit of your device
  • Rubber coated tips will hold device firm and stable
  • Socket technology allows for multiple adjustment angles and articulation of device
  • Includes Tether for open cockpit and extreme environments
  • Lifetime warranty
  • Made in U.S.A.
  • Material: Powder Coated Marine Grade Aluminium, Marine Grade Stainless Steel Components & High Strength Composite
  • Ball Size: 1" Rubber Ball "B" Size

Note: The "U" in the part number reflects product packaged in poly bag. RAM highly recommends using the provided Tether for all open cockpit applications while using this product.

Will suit phones that fit into the cradle dimensions above.

SKU RAM-B-166-UN10U
Barcode # 793442940712
Brand RAM Mounts
Country Of Manufacture United States
Product Specifications

Colour: Black

Custom Bundle: No

Non-Domestic Product: No

Modified Item: No

Warranty: Lifetime

Manufacturer Warranty: Lifetime

Compatible Brand: Samsung,Garmin,Apple,Google,HTC,Huawei,LG,Magellan,Motorola,Sony
